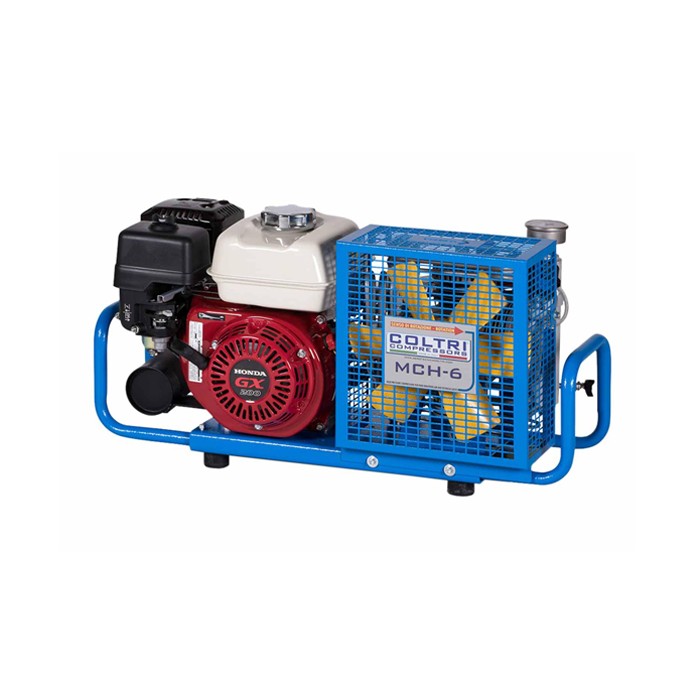

Compressor Coltri MCH6 Gasoline 300Bar

Specifications:

Charging rate: 100 L/min - 6 m³/h - 3,5 CFM

Filling time cylinder 10 L - 0-200 Bar: 20 min

Working pressure: 300 Bar / 4500 Psi

Rpm pumping unit: 2800


Certified CARB III EPA2-EURO2

Power: 3,6 Kw / 5,5 HP @ 3600 rpm

Fuel: Unleaded petrol

Fuel tank capacity: 3,6 L / 3.8 quarts

Fuel consuption: 0,987 L/h - 1.04 quarts/hour

Dimensions:
height 35cm/13.7", width 78cm/30.7", depth 32cm/12.5"

Dry weight: 37 Kg / 81.5 lbs

Noise power: 100,5 LWA

Noise pressure: 80,5 dB

Number of stages and cylinders: 4

Lubricating oil capacity: 300 cc (0,3 L) / 10 FL. OZ.

Lubricant: Coltri Oil CE 750

Frame: Powder coated steel

Oil/mosture separator:
After last stage with vortex generator

Filtration:
Filter cartridge activated carbon and molecular sieve

Safety valve:
On the separator housing 225-300-330 Bar

Interstage coolers and after coolers:
Stainless steel

Suction filter: 2 micron paper

Breathing air: EN 12021 CGA E
