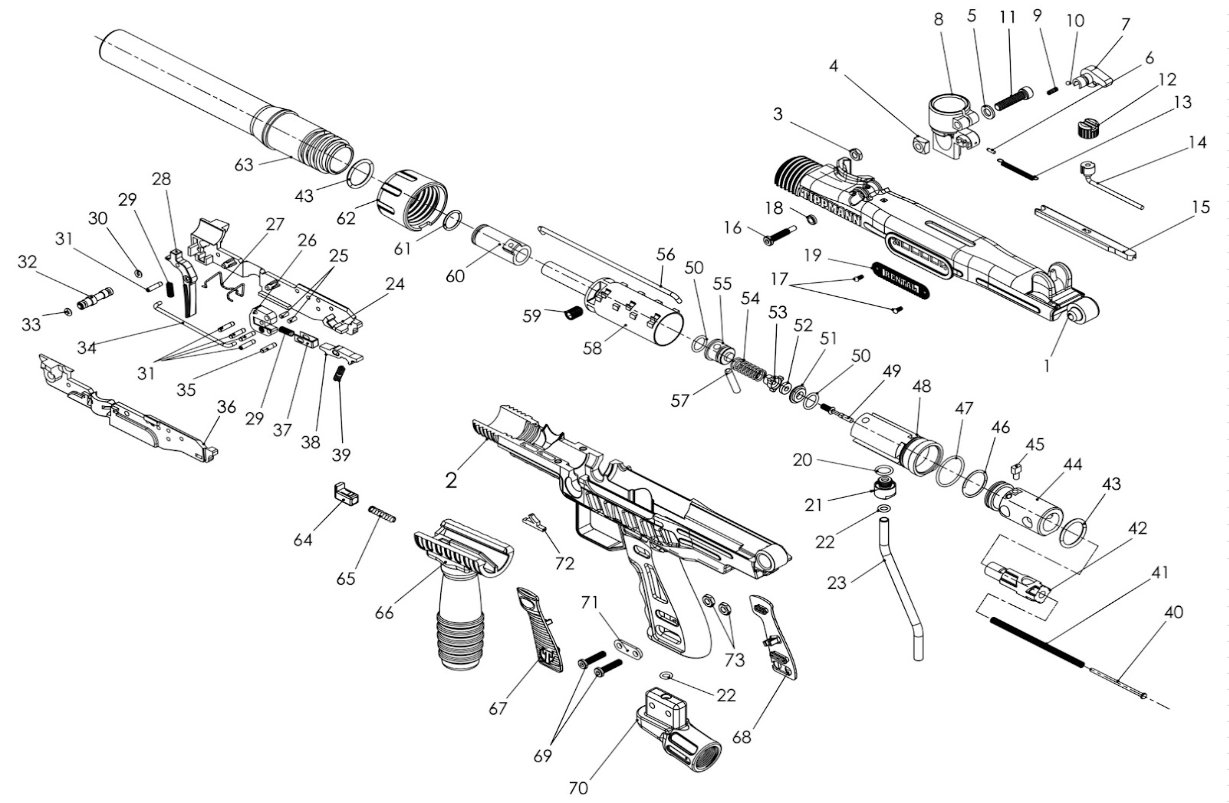

Tippmann FT 12 Lite Onderdelen Lijst
Op zoek naar een onderdeel die niet op de website staat? Neem contact met ons op!
| Item | Tippmann | GoPaintball | Productnaam |
|---|---|---|---|
| 1 | TA45079 | - | Top Receiver |
| 2 | TA45078 | - | Bottom Receiver |
| 3 | TA02060 | - | Hex Nut, 10-32, Black |
| 4 | PL-42D | - | Nut, ¼-20, Square, Black |
| 5 | 98-45 | - | Washer, M6, Flat Black |
| 6 | TA45087 | - | Stop Pin |
| 7 | TA45080 | - | Feed Tube Lock |
| 8 | TA45081 | - | Feed Tube .68 Caliber |
| 9 | TA45101 | - | Feed Tube Spring |
| 10 | TA45102 | - | Ball, Steel |
| 11 | PL-42C | - | Screw, ¼-20x1” SHCS |
| 12 | TA45048 | - | Cocking Knob Assembly |
| 13 | TA45104 | - | Tensile Spring |
| 14 | TA45086 | - | Pull Stick Zinc |
| 15 | TA45007 | - | Cover Plate |
| 16 | TA45044 | - | Screw, 10-32 |
| 17 | TA45047 | - | Rivet |
| 18 | TA45046 | - | Plastic Screw Washer |
| 19 | TA45045 | - | Name Plate |
| 20 | SL2-25 | - | O-Ring, Gas Line Joint |
| 21 | TA45033 | - | Gas Line Joint |
| 22 | TA40017 | - | O-Ring, Gas Line |
| 23 | TA45085 | - | Gas Line |
| 24 | TA45017 | - | Trigger Box, Right |
| 25 | 98-19 | - | Return Slide Dowel Pin |
| 26 | TA40011 | - | Trigger Adapter |
| 27 | TA45020 | - | Trigger Box Spring |
| 28 | TA45021 | - | Trigger |
| 29 | 98-20 | - | Sear Spring |
| 30 | FA-07 | - | Safety O-Ring, Black |
| 31 | TA45043 | - | Trigger Pin |
| 32 | TA45018 | - | Safety Pin |
| 33 | 98-20 | - | Safety O-Ring, Red |
| 34 | TA45016 | - | Trigger Link |
| 35 | TA45042 | - | Sear Pin |
| 36 | TA45019 | - | Trigger Box, Left |
| 37 | 98-18 | - | Trigger Return Slide |
| 38 | 02-35 | - | Sear |
| 39 | TA41033 | - | Sear Spring |
| 40 | CA-15 | - | Guide Pin |
| 41 | CA-14 | - | Spring |
| 42 | TA45061 | - | Rear Bolt Plug |
| 43 | 98-40 | - | O-Ring, Rear Bolt and Barrel, .68 Caliber |
| 44 | TA45091 | - | Rear Bolt Assembly |
| 45 | TA45023 | - | Pin, Rear Bolt |
| 46 | 98-12A | - | O-Ring, Rear Bolt |
| 47 | TA45034 | - | O-Ring, Valve Body (outside) |
| 48 | TA45092 | - | Valve Body .68 Caliber |
| 49 | TA45089 | - | Valve Stem .68 Caliber |
| 50 | TA45027 | - | O-Ring, Valve Body (inside) |
| 51 | TA45028 | - | Front Valve Seat |
| 52 | PA-28 | - | Valve Stem Cup Seal |
| 53 | TA45029 | - | Valve Stem Cup |
| 54 | 98-32 | - | Spring |
| 55 | TA45088 | - | Valve Plug |
| 56 | TA01016 | - | Linkage Arm |
| 57 | TA45090 | - | Valve Lock Pin |
| 58 | TA45025 | - | Power Tube, .68 Caliber |
| 59 | 02-22 | - | Set Screw, 5/16-24 x 7/16 |
| 60 | 02-17 | - | Front Bolt .68 Caliber |
| 61 | SL2-4 | - | O-Ring, Front Bolt |
| 62 | TA45039 | - | Barrel Nut .68 Caliber |
| 63 | TA45077 | - | Barrel .68 Caliber |
| 64 | TA45036 | - | Button |
| 65 | TA45037 | - | Button Spring |
| 66 | TA45082 | - | Front Grip |
| 67 | TA45083 | - | Grip Cover, Yellow, Left |
| 68 | TA45084 | - | Grip Cover, Yellow, Right |
| 69 | TA45011 | - | Air Supply Adapter (ASA) Screws |
| 70 | TA45012 | - | Air Supply Adapter (ASA) |
| 71 | TA45015 | - | Washer, Plastic |
| 72 | TA45074 | - | Ball Latch .68 Caliber |
| 73 | 9-PA | - | Nut, ASA, 10-32 |
