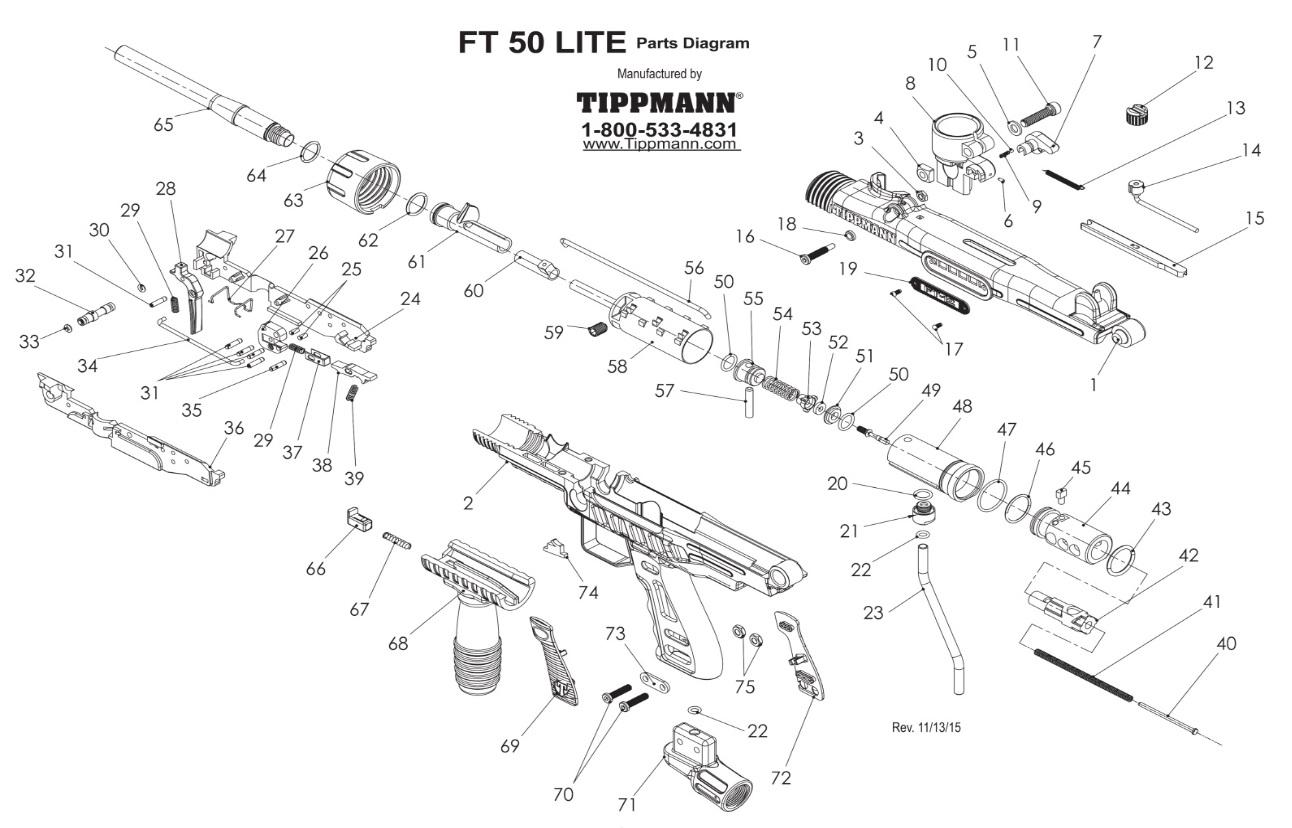

Tippmann FT 50 Lite Onderdelen Lijst
Tippmann FT 50 Lite Onderdelen
Op zoek naar een onderdeel die niet op de website staat? Neem contact met ons op!
| Item | Tippmann | GoPaintball | Productnaam |
| 1 | TA45079 | - | Top Receiver |
| 2 | TA45078 | - | Bottom Receiver |
| 3 | TA02060 | - | Hex Nut, 10-32, Black |
| 4 | PL-42D | - | Nut, ¼-20, Square, Black |
| 5 | 98-45 | - | Washer, M6, Flat Black |
| 6 | TA45087 | - | Stop Pin |
| 7 | TA45080 | - | Feed Tube Lock |
| 8 | TA45100 | - | Feed Tube .50 Caliber |
| 9 | TA45101 | - | Feed Tube Spring |
| 10 | TA45102 | - | Ball, Steel |
| 11 | PL-42C | - | Screw, ¼-20x1” SHCS |
| 12 | TA45048 | - | Cocking Knob Assembly |
| 13 | TA45104 | - | Tensile Spring |
| 14 | TA45086 | - | Pull Stick Zinc |
| 15 | TA45007 |
- | Cover Plate |
| 16 | TA45044 |
- | Screw, 10-32 |
| 17 | TA45047 |
- | Rivet |
| 18 | TA45046 |
- | Plastic Screw Washer |
| 19 | TA45060 |
- | Name Plate |
| 20 | SL2-25 |
- | O-Ring, Gas Line Joint |
| 21 | TA45033 |
- | Gas Line Joint |
| 22 | TA40017 |
- | O-Ring, Gas Line |
| 23 | TA45085 |
- | Gas Line |
| 24 | TA45017 |
- | Trigger Box, Right |
| 25 | 98-19 |
- | Return Slide Dowel Pin |
| 26 | TA40011 |
- | Trigger Adapter |
| 27 | TA45020 |
- | Trigger Box Spring |
| 28 | TA45021 |
- | Trigger |
| 29 | 98-20 |
- | Sear Spring |
| 30 | FA-07 |
- | Safety O-Ring, Black |
| 31 | TA45043 |
- | Trigger Pin |
| 32 | TA45018 |
- | Safety Pin |
| 33 | 98-20 |
- | Safety O-Ring, Red |
| 34 | TA45016 |
- | Trigger Link |
| 35 | TA45042 |
- | Sear Pin |
| 36 | TA45019 |
- | Trigger Box, Left |
| 37 | 98-18 |
- | Trigger Return Slide |
| 38 | 02-35 |
- | Sear |
| 39 | TA41033 |
- | Sear Spring |
| 40 | CA-15 |
- | Guide Pin |
| 41 | CA-14 |
- | Spring |
| 42 | TA45061 |
- | Rear Bolt Plug |
| 43 | 98-40 |
- | O-Ring, Rear Bolt |
| 44 | TA45103 |
- | Rear Bolt Assembly |
| 45 | TA45023 |
- | Pin, Rear Bolt |
| 46 | 98-12A |
- | O-Ring, Rear Bolt |
| 47 | TA45034 |
- | O-Ring, Valve Body (outside) |
| 48 | TA45094 |
- | Valve Body .50 Caliber |
| 49 | TA45095 |
- | Valve Stem .50 Caliber |
| 50 | TA45027 |
- | O-Ring, Valve Body (inside) |
| 51 | TA45028 |
- | Front Valve Seat |
| 52 | PA-28 |
- | Valve Stem Cup Seal |
| 53 | TA45029 |
- | Valve Stem Cup |
| 54 | TA45097 |
- | Spring |
| 55 | TA45088 |
- | Valve Plug |
| 56 | TA01016 |
- | Linkage Arm |
| 57 | TA45090 |
- | Valve Lock Pin |
| 58 | TA45064 |
- | Power Tube, .50 Caliber |
| 59 | 02-22 |
- | Set Screw, 5/16-24 x 7/16 |
| 60 | TA45073 |
- | Front Bolt .50 Caliber |
| 61 | TA45071 |
- | Sleeve, .50 Caliber |
| 62 | TA45072 |
- | O-Ring, Sleeve |
| 63 | TA45068 |
- | Barrel Nut .50 Caliber |
| 64 | TA45070 |
- | Barrel O-Ring |
| 65 | TA45096 |
- | Barrel .50 Caliber |
| 66 | TA45036 |
- | Button |
| 67 | TA45037 |
- | Button Spring |
| 68 | TA45082 |
- | Front Grip |
| 69 | TA45098 |
- | Grip Cover, Orange Left |
| 70 | TA45011 |
- | Air Supply Adapter (ASA) Screws |
| 71 | TA45012 |
- | Air Supply Adapter (ASA) |
| 72 | TA45099 |
- | Grip Cover, Orange Right |
| 73 | TA45015 |
- | Washer, Plastic |
| 74 | TA45074 |
- | Ball Latch .50 Caliber |
| 75 | 9-PA |
- | Nut, ASA, 10-32 |
