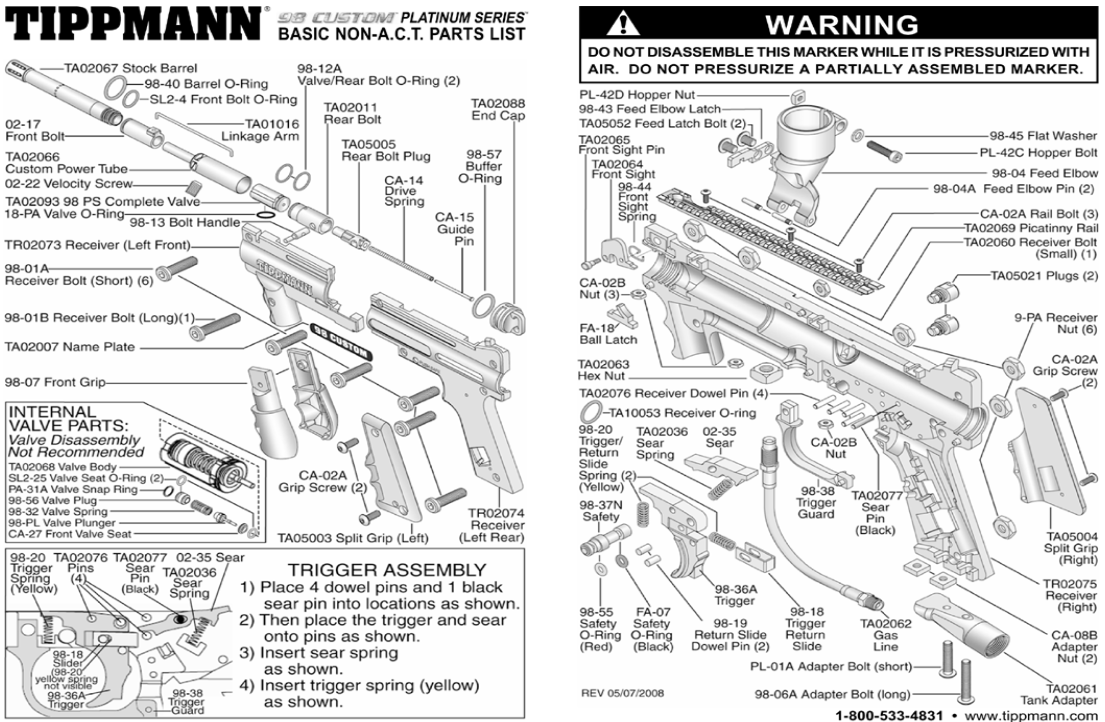

Tippmann 98 PS Basic Onderdelen Lijst
Bekijk de complete onderdelenlijst van de Tippmann 98 PS Basic met onderdeelnummers en directe links naar beschikbare onderdelen.
Op zoek naar een onderdeel die niet op de website staat? Neem contact met ons op!
| Item | Tippmann | GoPaintball | Productnaam |
|---|---|---|---|
| 1 | TA01014 | - | BUFFER O-RING |
| 2 | CA-14 | - | DRIVE SPRING |
| 3 | TA01016 | - | LINKAGE ARM |
| 4 | TA02011 | - | REAR BOLT |
| 5 | FA-18 | - | BALL LATCH |
| 6 | TA02067 | - | BARREL |
| 7 | 98-40 | - | BARREL O-RING |
| 8 | TA02076 | - | DOWEL PIN |
| 9 | TA02077 | - | DOWEL PIN, BLACK |
| 10 | 98-E | - | ELBOW COMPLETE |
| 11 | TA02088 | - | END CAP |
| 12 | 98-04 | - | FEED ELBOW |
| 13 | TA02076 | - | FEED ELBOW DOWEL PIN |
| 14 | 98-43 | - | FEED ELBOW LATCH |
| 15 | TA05052 | - | FEED ELBOW SCREW |
| 16 | 02-17 | - | FRONT BOLT |
| 17 | SL2-4 | - | FRONT BOLT O-RING |
| 18 | 98-07L | - | FRONT GRIP, LEFT |
| 19 | 98-07R | - | FRONT GRIP,RIGHT |
| 20 | TA02064 | - | FRONT SIGHT |
| 21 | TA02065 | - | FRONT SIGHT PIN |
| 22 | 98-44 | - | FRONT SIGHT SPRING |
| 23 | TA02037 | - | GAS LINE |
| 24 | TA02063 | - | GAS LINE NUT |
| 25 | CA-02A | - | GRIP SCREW / RAIL BOLT |
| 26 | CA-15 | - | Guide PIN, FLT. FILLISTER HD |
| 27 | PL-42D | - | HOPPER NUT, SQUARE |
| 28 | TA02007 | - | NAME PLATE |
| 29 | CA-02B | - | NUT for rail |
| 30 | CA-08B | - | NUT, Tank Adapter |
| 31 | TA10053 | - | O-RING |
| 32 | 18-PA | - | O-RING Valve Powertube seal |
| 33 | 98-12A | - | O-RING, VALVE\REAR BOLT |
| 34 | TA02069 | - | PICATINNY RAIL |
| 35 | TA02066 | - | POWER TUBE |
| 36 | TA05021 | - | POWER TUBE PLUG |
| 37 | 98-13 | - | REAR BOLT HANDLE |
| 38 | 98-01A | - | RECEIVER BOLT |
| 39 | 98-01B | - | RECEIVER BOLT LONG |
| 40 | TA05003 | - | RECEIVER GRIP, LEFT |
| 41 | TA05004 | - | RECEIVER GRIP, RIGHT |
| 42 | TA02060 | - | RECEIVER NUT SMALL |
| 43 | 9-PA | - | RECEIVER NUT/ADAPTER NUT |
| 44 | TA02073 | - | RECEIVER, LEFT FRONT |
| 45 | TA02074 | - | RECEIVER, LEFT REAR |
| 46 | TA02075 | - | RECEIVER, RIGHT |
| 47 | 98-037N | - | SAFETY |
| 48 | FA-07 | - | SAFETY O-RING BLACK |
| 49 | 98-55 | - | SAFETY O-RING RED |
| 50 | PL-42C | - | SCREW, SHCS |
| 51 | 02-35 | - | SEAR |
| 52 | TA02036 | - | SEAR SPRING |
| 53 | PA-31A | - | SNAP RING, INTERNAL |
| 54 | TA02017 | - | SPRING PIN |
| 55 | TA02061 | - | TANK ADAPTER |
| 56 | 98-06A | - | TANK ADAPTER BOLT LONG |
| 57 | PL-01A | - | TANK ADAPTER BOLT SHORT |
| 58 | 98-36A | - | TRIGGER |
| 59 | 98-19 | - | TRIGGER DOWEL PIN |
| 60 | 98-38 | - | TRIGGER GUARD |
| 61 | 98-18 | - | TRIGGER RETURN SLIDE |
| 62 | 98-20 | - | TRIGGER SPRING YELLOW |
| 63 | TA02068 | - | VALVE BODY |
| 64 | TA02022 | - | VALVE COMPLETE PS |
| 65 | 98-56 | - | VALVE PLUG |
| 66 | CA-27 | - | VALVE SEAT |
| 67 | SL2-25 | - | VALVE SEAT O-RING |
| 68 | 98-32 | - | VALVE SPRING |
| 69 | CA-30N | - | VALVE STEM |
| 70 | CA-29 | - | VALVE STEM CUP |
| 71 | PA-28 | - | VALVE STEM CUP SEAL |
| 72 | 02-22 | - | VELOCITY SCREW |
| 73 | 98-45 | - | WASHER |
